Basic Information
| Model NO : |
Rolls-Royce Ghost |
| OEM: |
37126851606 37126795874
37106862192
|
| Position: |
Rear Right |
| Structure: |
Single Cylinder |
| Type: |
Gas-Filled |
| Spring Type: |
Air Spring |
| Car Make: |
Rolls-Royce |
| Damping Force Direction: |
Single Effect |
| Spring Material: |
Steel+Rubber |
| Origin: |
China |
| Color: |
Black and Blue,Silvery |
| Used For: |
Aftermarket |
Product Description

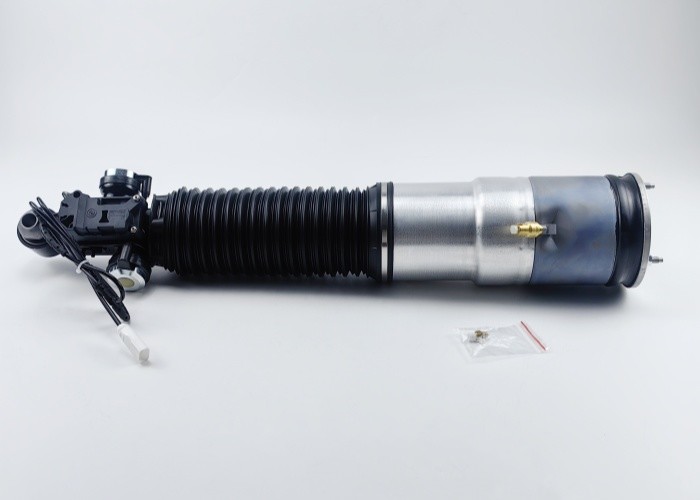

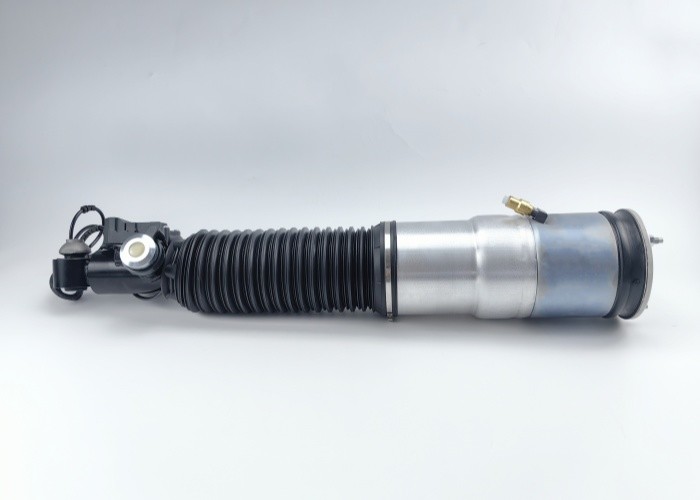

Rolls Royce Ghost (2010-2019) Rear Right Air Shock Absorber
A shock absorber or damper is a mechanical or hydraulic device used to absorb and damp shock impulses. This is done by converting the kinetic energy of the shock into another form of energy (typically heat), which is then dissipated. Most shock absorbers are some sort of dashpot (a damper that resists motion by viscous friction).
Component type: Air suspension system component
Function: Support vehicle weight, absorb road vibrations, maintain vehicle stability and ride comfort, while collaborating with electronic control systems to achieve dynamic damping adjustment.
Core Technology and Structure:
1. Integrated design of air spring and shock absorber
Composed of high-strength aluminum alloy and rubber airbags, the interior is filled with compressed air, which adjusts the height and hardness of the vehicle through changes in air pressure.
Integrated hydraulic shock absorbers (dampers) can dynamically control rebound and compression rates, reducing the transmission of bumps.
2. Adaptive damping system
Supporting Rolls Royce's Magic Carpet Ride technology, real-time monitoring of road surface and driving conditions through onboard sensors, and automatic adjustment of shock absorber softness and hardness.
The rear right shock absorber works independently of the left shock absorber to ensure that the vibration of one side of the wheel does not affect the overall balance of the vehicle.
3. Electronic Control Unit (ECU) linkage
Communicate with the vehicle height sensor, acceleration sensor, and chassis control module to achieve precise air pressure adjustment (such as lowering the body during high-speed driving or raising the body on bumpy roads).
Material and Durability
Airbag material: multi-layer reinforced rubber+nylon coating, resistant to aging and puncture.
Shock absorber cylinder: chrome plated steel cylinder body, with low friction sealing technology inside, suitable for high-frequency compression motion.
Service life: Approximately 8.1 million kilometers under normal operating conditions, but greatly affected by driving environments such as extreme temperatures and road conditions.
Fit For the Following Models:
Replacement for 2010- 2019 Rolls-Royce Ghost Base Sedan 4-Door 6.6L 6592CC 402Cu. In. V12 GAS DOHC Turbocharged
Replacement for 2012- 2019 Rolls-Royce Ghost EWB Sedan 4-Door 6.6L 6592CC 402Cu. In. V12 GAS DOHC Turbocharged
Picture Details
